UL listed LED Emergency Driver self -diagnostic LED Emergency battery backup
Product Description
The unit contains a battery, charger, and converter circuit in a single enclosure
The unit will operate an LED array load at 10 wattswith constant power at a rated output voltage of 10V-60V
The Constant Power design of it maintains the output wattage to the LED array even as the system voltage diminishes
The integrated self-diagnostic circuitry will automatically conduct monthly 30-second and annual 90-minute tests to verify proper emergency capability per Life Safety Code requirements
High-efficiency performance and complies with CEC efficiency standards
UL Listed self-diagnostic LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation
In the event of a power failure, it switches to the emergency mode and operates the existing fixture for 90 minutes
Product Advantages
Satisfies the periodic testing requirements in accordance with NFPA 101
Internal self-diagnostic circuitry tests battery, charger, and load performance
High Efficiency design meets CEC efficiency standards (CEC-400-2014-009-CMF)
UL Listed for field installation
Constant Power Design maintains emergency illumination through
90-minute runtime with no light degradation
Two-wire universal AC input
Self-sensing output voltage operates various product types, reducing product SKUs for emergency options
Certifications: UL, cUL
Listed to UL924 and tested to CSA C22.2 NO.141 Field or factory installation
High voltage output
Low energy consumption CEC compliance
Constant output power
Self-testing
Battery: Over temperture protection
Warranty: 5 Years
Technical Specifications
| Product Dimension | Input Voltage | Output Voltage | Emergency Output Power | Battery Type | Emergency Time | Working Temperature |
286.32*59.32*39.36mm | 100-347Vac | 20-50Vdc | 4-30W | Li-ion | ≥1.5H | 50℃ |
| 51-80Vdc |
| 81-155Vdc |
| 156-230Vdc |
| 20-50Vdc | 4-20W |
| 51-80Vdc |
| 81-155Vdc |
| 156-230Vdc |
| 20-50Vdc | 4-12W |
| 51-80Vdc |
| 81-155Vdc |
| 156-230Vdc |
| 20-50Vdc | 4-8W |
| 51-80Vdc |
| 81-155Vdc |
| 156-230Vdc |

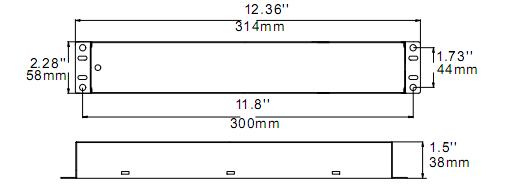

Dimensions
Housing: 12.36*2.28*1.5inch (314*58*38mm)
Mounting Center: 11.8inch (300mm)
Flexible Conduit: 13inch (330mm)

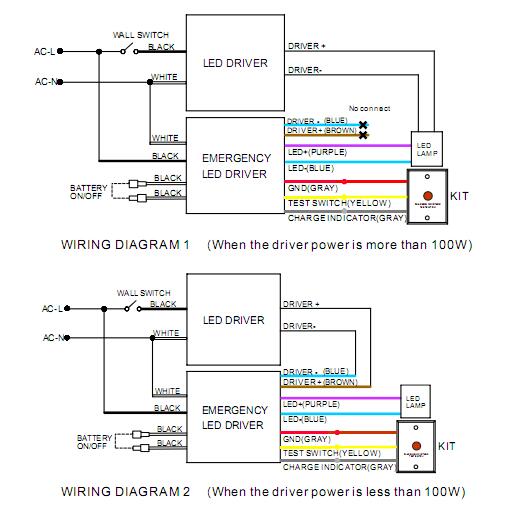

Wiring Diagram
User Manual
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quaity Control
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
